DDR4 2666MHz、SATA 6Gbps USB 3.1 Gen 1 Intel LGA-1151 9th/8th M-ATXマザーボード ASUS:PRIME H310M-E R2.0
DDR4 2666MHz、SATA 6Gbps USB 3.1 Gen 1 Intel LGA-1151 9th/8th M-ATXマザーボード ASUS:PRIME H310M-E R2.0
DDR4 2666MHz、SATA 6Gbps、およびUSB 3.1 Gen 1 Intel LGA-1151 mATXマザーボード
- ASUS OptiMem: 信号の整合性を向上するトレースとビアの慎重なルーティングによりメモリの安定性を強化
- Fan Xpert: 究極の冷却と静音性を実現する柔軟なコントロール、 ゲーミング仕様のGPU温度検出機能を搭載
- 5X Protection III: 複数のハードウェアプロテクションの組合せによる絶対的な保護
- 対応CPU
Intel? Socket 1151 9th / 8th Gen Intel? Core?; Pentium? Gold and Celeron? Processors
Supports Intel? 14 nm CPU
Supports Intel? Turbo Boost Technology 2.0
* The Intel? Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list - 搭載チップセット
Intel? H310
- メインメモリ
2 x DIMM; Max. 32GB; DDR4- 2666/2400/2133 MHz Non-ECC; Un-buffered Memory
デュアルチャンネル Memory Architecture
Supports Intel? Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel? 8th Gen. 6-core or higher processors. - グラフィックス機能
Integrated Graphics Processor- Intel? HD Graphics support
Multi-VGA output support : HDMI/D-Sub ports
– Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz– Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel? InTru? 3D; Quick Sync Video; Clear Video HD Technology; Insider? - 拡張スロット
1 x PCIe 3.0/2.0 x16 (x16 mode; gray)
2 x PCIe 2.0 x1 - ストレージ機能
Intel? H310 Chipset :
1 x M.2 Socket 3; ; with M Key; type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1
4 x SATA 6Gb/s port(s); gray; - LAN機能
Realtek? RTL8111H; 1 x 1000BASE-T/100BASE-TX/10BASE-T LAN
- オーディオ機能
Realtek? ALC887 8-Channel High Definition Audio CODEC
– Supports : Jack-detection; Front Panel Jack-retasking
Audio Feature :
– LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.
– Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Premium Japanese audio capacitors: Provide warm; natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output. - USB機能
Intel? H310 Chipset :
4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel; blue; Type-A; 2 at mid-board)
Intel? H310 Chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel; ; 4 at mid-board) - 独自機能
ASUS 5X Protection III :
– ASUS SafeSlot Core: Fortified PCIe Slot prevents damage– ASUS LANGuard: Protects against LAN surges; lightning strikes and static-electricity discharges!
– ASUS Overvoltage Protection: World-class circuit-protecting power design
– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
– ASUS DIGI+ VRM: Premium components provide better power efficiency
ASUS OptiMem：
– Optimem (Improved DDR4 stability)
ASUS EPU :
– EPU
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
– PC Cleaner
– File Transfer
ASUS Quiet Thermal Solution :
– Stylish Fanless Design Heat-sink solution
– ASUS Fan Xpert
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
– ASUS Q-DIMM

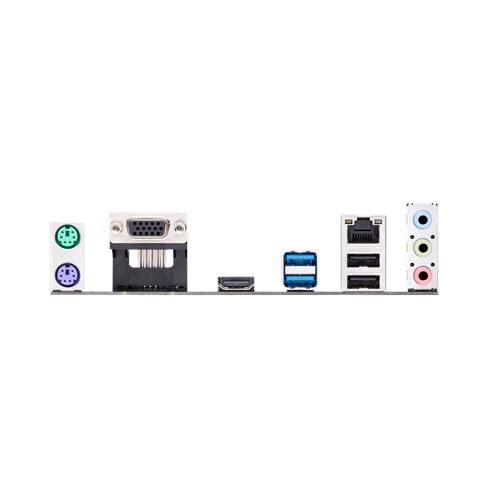

M.2 Onboard(The latest transfer technologies with up to 10Gb/s data transfer speeds) - 背面インターフェース
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps
2 x USB 2.0
3 x Audio jack(s) - 基板上インターフェース
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key; type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)1 x TPM header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector - 主な付属品
User’s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Anchor
1 x Supporting DVD - BIOS機能
128 Mb Flash ROM; UEFI AMI BIOS; PnP; SM BIOS 3.1; ACPI 6.1; MultilanguageBIOS; ASUS EZ Flash 3; CrashFree BIOS 3; F6 Qfan Control; F3 MyFavorites; Last Modified log; F12 PrintScreen; and ASUS DRAM SPD (SerialPresence Detect) memory information
- 管理機能
WOL by PME; PXE
- OS
Windows? 10 64-bit
- フォームファクター（サイズW×D）
mATX Form Factor
8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm ) - その他
*1 When a device in SATA mode is installed on the M.2 socket; SATA_2 port cannot be used.
Due to the Chipset limitation; when a M.2 device is installed in PCIe mode; the socket is set
to PCIe 2.0.
