PCI-E SATA3.0 2-Port SATA III 6Gカード/PCI-E (1 ×; 4 ×; 8 ×; 16 ×)(Bulk) OOTDTY:SSU-SATA3-T2.V1

New Adapter Card PCI-E Adapter Card PCI Express to SATA3.0 2-Port SATA III 6G Expansion Controller Card Adapter hot

Comliant with Serial ATA Specification 3.0;Compliant with PCIe 2.0 specifications.
Supports communication speeds of 6.0Gbps;3.0Gbps and 1.5Gbps
Supports programmable transmitter signal levels

Supports Gen 1i;Gen 2i;Gen 2m; Gen 2x and Gen 3i
Applicable Slot: PCI-E (1 ×; 4 ×; 8 ×; 16 ×)
Supports two SATA Ports
Supports AHCI 1.0 and IDE programming interface
Supports Native Command Queuing(NCQ)
Supports Port Multiplier FIS based switching or command based switching
Supports Partial and Slumber Power Management states
Supports Hot Plug and Hot Swap
Compatible with SATA 6G;3G and 1.5G Hard Drives
Large chassis / small chassis can be used.
Bus Interface:PCI-Express x1
Connectors: 2x SATA
System Support:
PCI Express-enabled system with on avaliable PCI Express slot
Windows 8/7(32/64bit)/Vista(32/64bit)/XP/Server 2003/2008
Board size:(L*W)6.70*5.60cm/2.64″*2.20″
Bracket size(L*W):8.00*2.20cm/3.15″*0.87″ ; 12.00*2.20cm/4.72″*0.87″
Quantity:1Set
Note:

This product can only be installed on a PCI-E interface; Do not install the older PCI interface
Size for manual measurement; there may be a 0 to 2 cm error; belongs to the normal phenomenon.
And due to the difference between different monitors; the picture may not reflect the actual color of the item. Thank you!
Package includes:

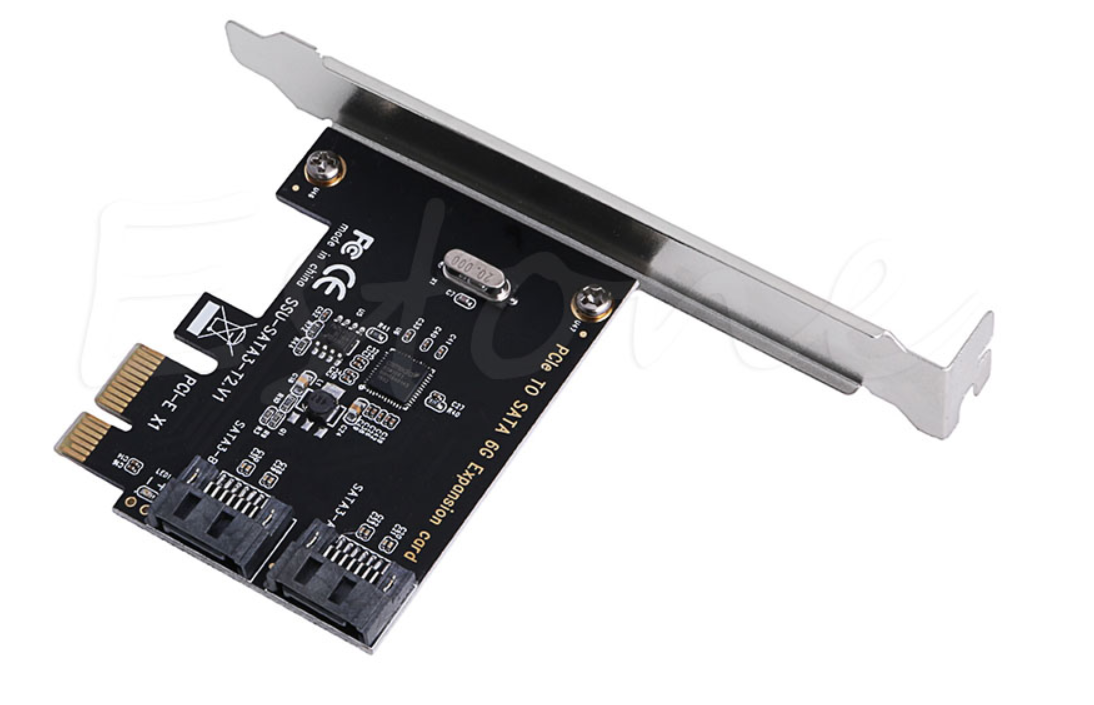

1Pc x PCI-e 2-Port SATA3 SATA III 6Gb/s Card (No retail package)
1Pc x Low Profile Bracket
2Pcs x Screws
